    Water Vending Machine








    1. Picture and Features (Appearance only for reference)

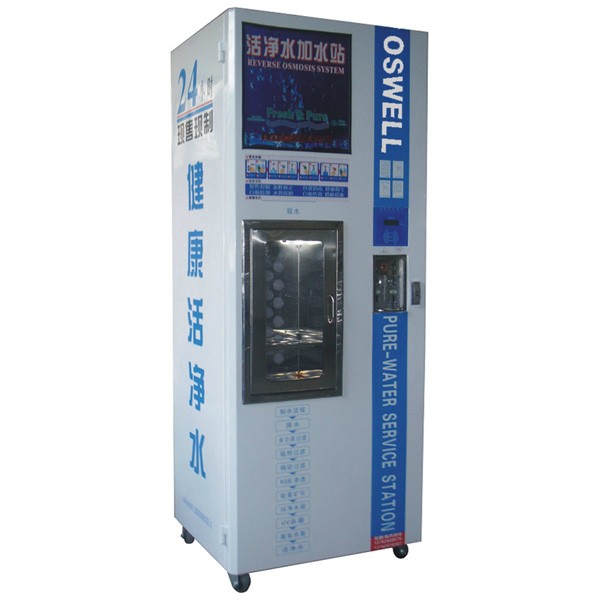

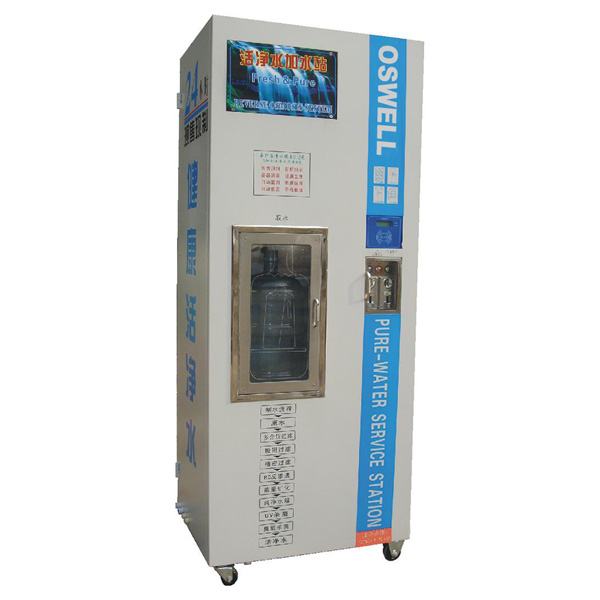

    Outer Appearance 01

    Outer Appearance 02

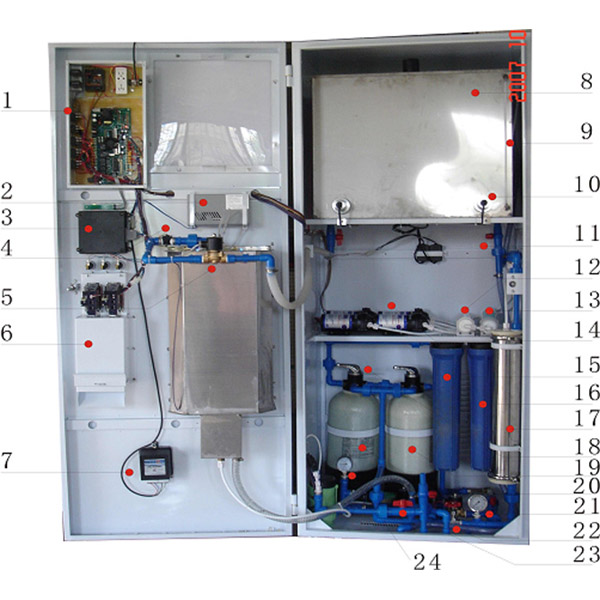

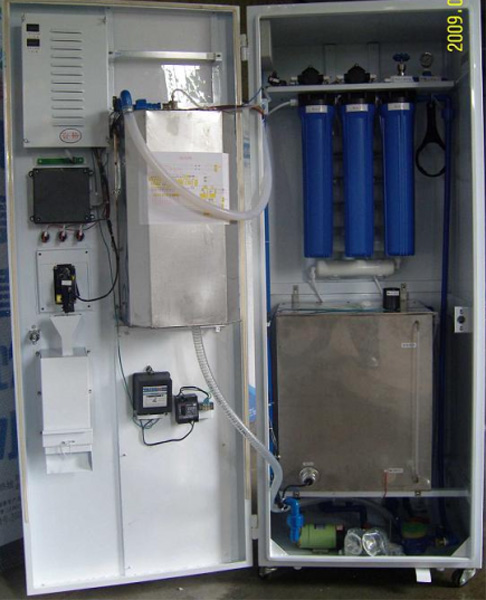

    Inner Structure 01

    Inner Structure 01

    2. Description of main model series

    RO-100A-A series is available for 400GPD (1500 Litres/Day), 600GPD (2300 Litres/Day), 800DPD (3000 Litres/Day), 1000GPD (3700 Litres/Day) and 1300GPD (4900 Litres/Day).

    RO-100A-D series is available for 200GPD (750 Litres/Day), 300GPD (1100 Litres/Day), 400DPD (1500 Litres/Day), 500GPD (1800 Litres/Day) and 600GPD (2200 Litres/Day).

    3. Machine size, packing size & FCL of 20ft and 40ft

    Machine size is 800*680*2000(mm), Packing size is 900*820*2060(mm)
    FCL of 20ft is 18 units, FCL of 40ft is 36 units.

    Machine size is 700*600*1800(mm), Packing size is 840*775*1900(mm),
    FCL of 20ft is 27 units, FCL of 40 is 54 units.

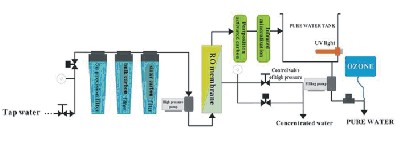

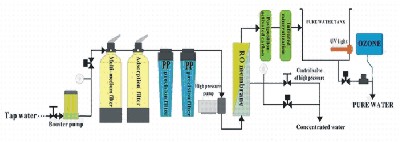

    4. The Flow Chart of Water Purification System

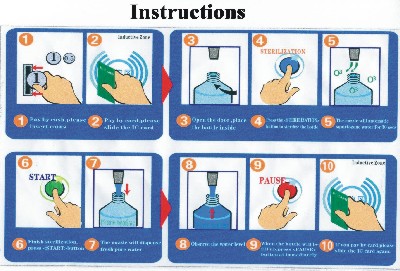

    5. How to get water, from the vending machine

    6. Application situation and other terms

    The machine can be installed at residential area & big community, supermarket & store,
    school & hospital, bus station & railway station & air port etc.

    The requirement of source water is municipal tap water, and TDS value is below 300ppm.

    We can adjust the coin selectors, with the coin currency of most of countries.

    We also can make OEM production, with your logo, your favourite graphic design for
    machine appearance and your local distributor service hotline etc.

    As to sample order or small quantity order, no mark design and English version are
    available. sample order of 1 unit is warm welcome, at the first stage of cooperation.

    Production lead time: about 2 weeks is for sample order, and about 3~4 weeks is for
    batch order.

    Packing mode: wooden box is for bulk cargo (less container load), wooden base and
    carton box are for container cargo (full container load).

    Guarantee: one year. (3 years for main board). Technical support is alway available.
