• You are here：Products > Water Dispenser >Mini style - Tabletop > OSWD-M4 (tabletop)
    no PDF
    ※ Detail in PDF file

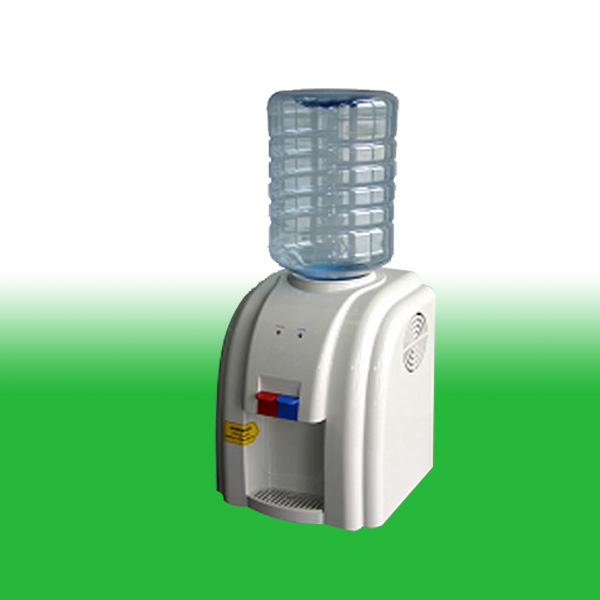

    OSWD-M4 (tabletop)







    Model NO.

    YLR0.6-5-X

    YL-0.6-X

    YR-5-X

    Item NO.

    OSWD-M4CH

    OSWD-M4C

    OSWD-M4H

    Power source

    AC 220-230V or 100~120V

    50 or 60Hz

    Rated input (heating)

    460W

    N/A

    460W

    Rated input (cooling)

    68W

    68W

    N/A

    Heating capacity

    5 liters/hour 85-95 degrees Celsius

    N/A

    5 liters/hour 85-95 degrees Celsius

    Cooling capacity

    0.6 liters/hour 10-15 degrees Celsius

    0.6 liters/hour 10-15 degrees Celsius

    N/A

    Type of protecting Electric shock

    I

    I

    I

    Fuse

    4A 250V

    4A 250V

    4A 250V

    Power connection mode

    X

    X

    X

    Ambient temperature

    10-32 degrees Celsius

    10-32 degrees Celsius

    10-38 degrees Celsius

    Net weight (kg)

    2.8

    2.6

    2.3

    Machine dimensions (mm)

    240*260*335

    240*260*335

    240*260*335

    Package dimensions (mm)

    280*280*380

    280*280*380

    280*280*380

    Quantity 20ft / 40t / 40ft HQ

    840/1172/1927

    840/1172/1927

    840/1172/1927

    Certificate

    CE

    CE

    CE


    This model can be sorted as 3 items.

    That is M4CH (hot water and cold water), M4C (cold water and room temp water), M4H (hot water and room temp water).

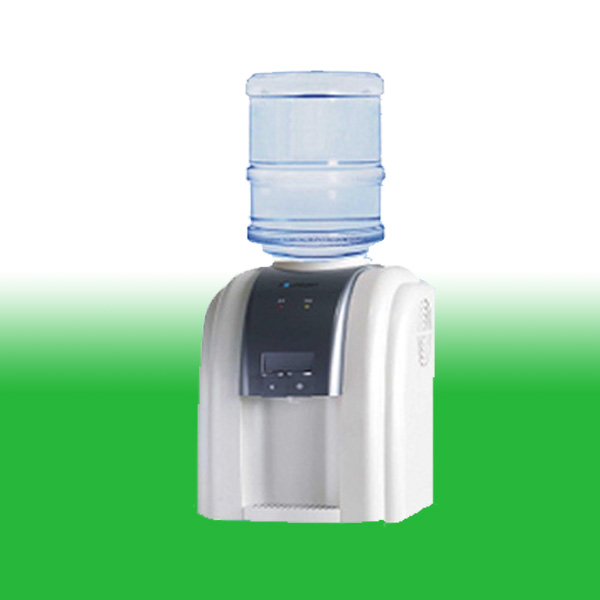

    Another color matching proposals.
